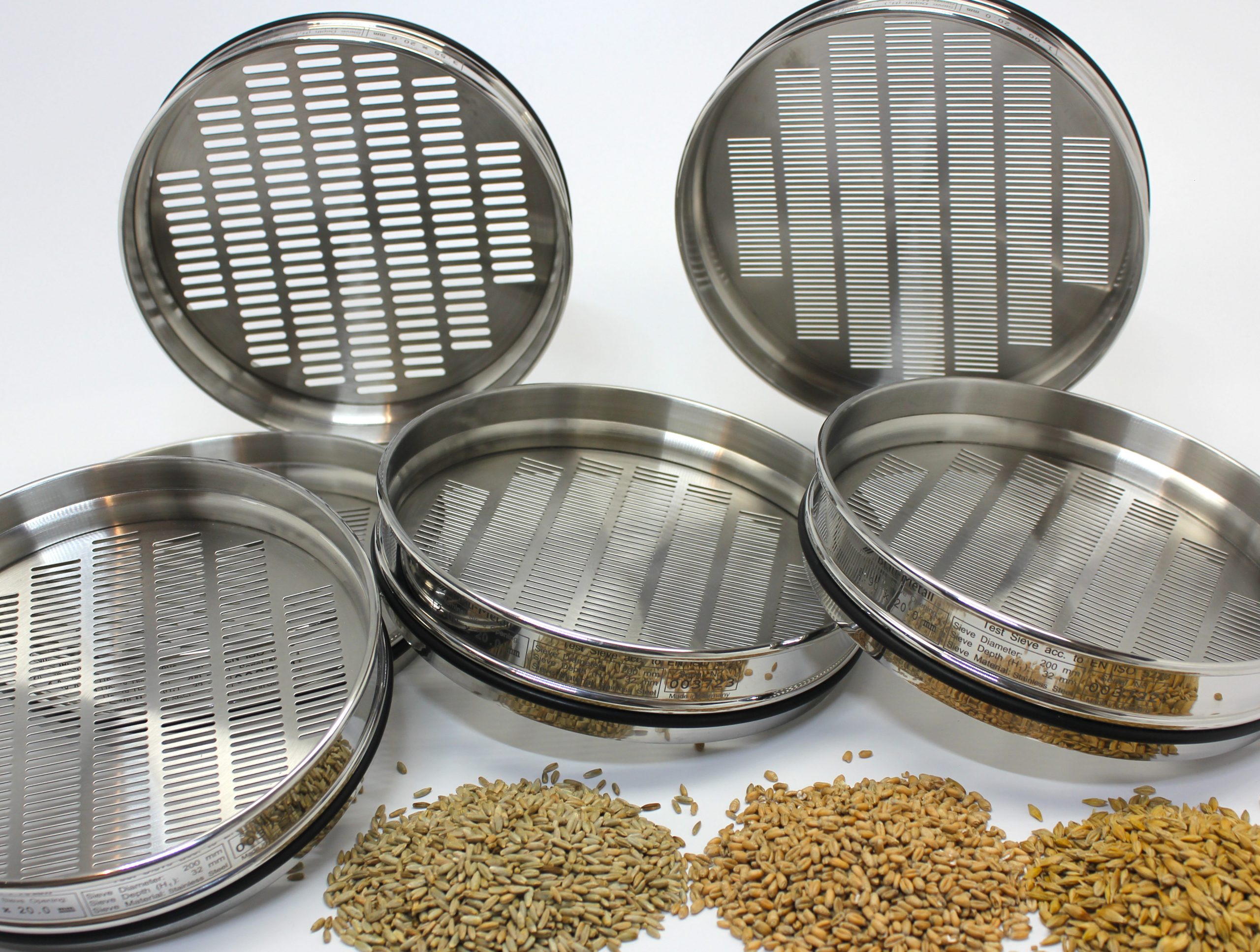

Test Sieve Set according to EN 15587 (Full Set, 6 Pcs.)

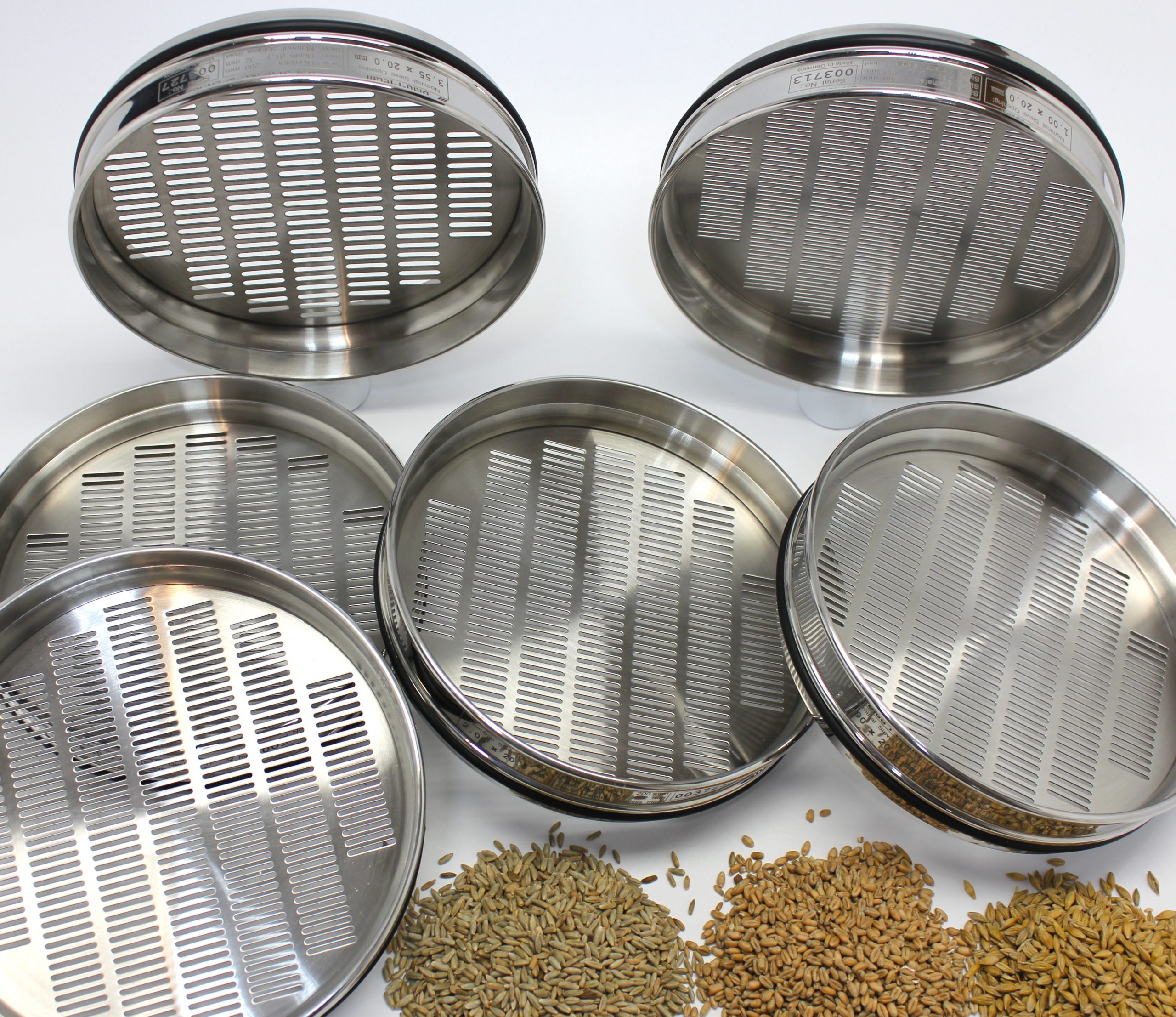

Test Sieve Set according to EN 15587 (Full Set, 6 Pcs.) - Image 2

Test Sieve Set according to EN 15587 (Full Set, 6 Pcs.)

Test Sieve Set ISO 5223, ⌀ 200 mm, Set of 6 Sieves, Determination of Besatz

908.80 € (Plus Shipping)

This Test Sieve Set includes six test sieves, Diameter 200 mm, ISO 5223, incl. Inspection Certificate:

  • Oblong Apertures: 1.00 x 20.0 mm (Besatz)
  • Oblong Apertures: 1.80 x 20.0 mm (Rye)
  • Oblong Apertures: 1.90 x 20.0 mm (Durum Wheat, Triticale)
  • Oblong Apertures: 2.00 x 20.0 mm (Common Wheat)
  • Oblong Apertures: 2.20 x 20.0 mm (Feed Barley)
  • Oblong Apertures: 3.55 x 20.0 mm (Besatz)
*eStore Orders are limited to small quantities. If you require a larger quantity, please contact us directly for an individual quote.
SKU: BMSET-EN15587-6PCS Categories: , Tags: , ,

Description

Blau-Metall Laboratory Test Sieve Set (Grain Sieves), Set of 6 Sieves

Test Sieves ⌀ 200 mm, Determination of Besatz / Impurities in Cereals (EN 15587)

Set of stainless Steel test sieves with high-precision apertures for manual sieving by hand or automatic sieving with a sieve shaker according to ISO 5223 / EN 15587 and comparable national and international standards.

✔  Durable Design for Long Lifetime (All stainless-steel components)
✔  High-precision aperture according to ISO 5223
✔  Fully Sealed Design to eliminate cross contamination
✔  Tamper-Proof, 3D Laser Label with individual Serial Number for full traceability
✔  Incl. Inspection Certificates (EN 10204) in English Language
✔  Assembled & Certified in Germany, All Parts sourced in Germany
✔  Compatible with 200 mm Sieves & Sieve Shakers of all major manufacturers

Set of 6 Test Sieves

  • 1 Pcs. Test Sieve ISO 5223, Diameter: 200 mm, Oblong Apertures: 1.00 x 20.0 mm (Fines, Extraneous Matter)
  • 1 Pcs. Test Sieve ISO 5223, Diameter: 200 mm, Oblong Apertures: 1.80 x 20.0 mm (Rye)
  • 1 Pcs. Test Sieve ISO 5223, Diameter: 200 mm, Oblong Apertures: 1.90 x 20.0 mm (Durum Wheat, Triticale)
  • 1 Pcs. Test Sieve ISO 5223, Diameter: 200 mm, Oblong Apertures: 2.00 x 20.0 mm (Common Wheat)
  • 1 Pcs. Test Sieve ISO 5223, Diameter: 200 mm, Oblong Apertures: 2.20 x 20.0 mm (Feed Barley)
  • 1 Pcs. Test Sieve ISO 5223, Diameter: 200 mm, Oblong Apertures: 3.55 x 20.0 mm (Besatz)

Application

  • Determination of "Besatz" in Cereal & Cereal Products (EN 15587), used as lower sieve to determine extraneous matter for samples of
  • Wheat (Triticum aestivum L.)
  • Durum Wheat (Triticum durum Desf.)
  • Rye (Secale cereale L.)
  • Triticale (Triticosecale Wittmack spp.)
  • Feed Barley (Hordeum vulgare L.)

Technical Specifications

Sieve Type: Oblong Apertures
Standard: EN ISO 5223
Sieve Diameter: 200 mm
Sieve Depth (H1): 32 mm (Half Height)
50 mm (Full Height)
Frame: Stainless Steel (1.4301 / AISI 304)
Total Frame Height: 46 mm (Half Height)
64.5 mm (Full Height)
Frame Thickness: 0.8 mm
Sieving Medium: Stainless Steel (1.4301 / AISI 304)
Plate Thickness: 0.8 mm
Internal Tensioning Ring: Stainless Steel (1.4301 / AISI 304)
Sieve Weight: 430 g (32 mm), 520 g (50 mm)
Perforation Type: Oblong in straight rows
Aperture Dimensions:  1) 1.00 x 20.0 mm (±0.03 x 0.20)

2) 1.80 x 20.0 mm (±0.04 x 0.20)

3) 1.90 x 20.0 mm (±0.04 x 0.20)

4) 2.00 x 20.0 mm (±0.04 x 0.20)

5) 2.20 x 20.0 mm (±0.05 x 0.20)

6) 3.55 x 20.0 mm (±0.06 x 0.20)
Pitch (p1): 1) 3.00 x 25.0 mm (±0.10 x 0.50)

2) 4.20 x 25.0 mm (±0.12 x 0.50)

3) 4.30 x 25.0 mm (±0.12 x 0.50)

4) 4.50 x 25.0 mm (±0.13 x 0.50)

5) 4.90 x 25.0 mm (±0.13 x 0.50)

6) 6.80 x 25.0 mm (±0.17 x 0.50)
Certification Type: Certification (incl. Certificate 3.1)
Laser Engraving: English, incl. Individual Serial-No.
Certificate Language: English
Internal Seal: Double Solder Joint
External Gasket: NBR 70
Temperature Range: -30 to 100 °C



Blau-Metall Grain Sieves

The Blau-Metall sieve portfolio builds on nearly 30 years of experience in the production of robust and highly-precise grain sieves across international ISO standards, European standards, the U.S. Code of Federal Regulations and a variety of national requirements to provide our customers with a complete solution for all grain sieving tasks across all markets.

Blau-Metall test sieves stand out for their particularly robust design and their high precision perforated plate achieved through a production process perfected over nearly three decades and a rigorous quality control program that includes multiple stages of optical measurements on each and every sieve we deliver. The sieves consist of high-stability stainless steel frames with smooth upper edges for easy handling and precision-aperture perforated plates made from corrosion-resistant stainless steel, both joined by a stainless-steel tensioning ring and a pair of robust solder joints that form a complete seal that will stay in place over an extended period.

Blau-Metall grain test sieves are compatible with quality sieves of other sieve manufacturers and can be used on sieve shakers and sieve machines of all major suppliers. Given their light weight and handy dimensions, the sieves are also ideally suited for on-site analysis and hand-sieving of grain samples. Our construction methodology with ease of use in mind enables a simple cleaning process for our sieves. With their fully sealed and corrosion- & temperature-resistant design, Blau-Metall sieves can deliver reliable and repeatable sieving results over a period of many years – a stark contrast to comparable sieves with aluminum or galvanized steel components.

Further Reading

> Blau-Metall Test Sieves according to EN ISO 5223

> Determination of Impurities (Besatz) in Cereals according to EN 15587

> Grain Test Sieves in national and international Standards

Test Sieve Specifications

Weight 3635 g
Dimensions 47 × 23 × 22 cm
Country of Origin

Germany
Brand

Blau-Metall
Scope of Delivery

6 Pcs. Test Sieves, Diameter 200 mm, ISO 5223
Sieve Type

Perforated Plate
Perforation Type

Oblong
Sieve Standard

EN ISO 5223, ISO 5223, DIN ISO 5223, BS ISO 5223
Sieve Diameter

200 mm (7.87")
Test Sieve Depth (H1)

32 mm, 50 mm
Frame

Stainless Steel (1.4301 / AISI 304)
Total Frame Height

46 mm (Half Height), 64.5 mm (Full Height)
Frame Thickness

0.8 mm
Internal Tensioning Ring

Stainless Steel (1.4301 / AISI 304)
Perforated Plate

Stainless Steel (1.4301 / AISI 304)
Plate Thickness

0.8 mm
Sieve Weight

430 g (200 x 32 mm), 520 g (200 x 50 mm)
Total Weight (incl. Packaging)

3.64 kg (200 x 32 mm), 4.18 kg (200 x 50 mm)
Dimensions (incl. Packaging)

460 x 230 x 220 mm
Perforation

Oblong in straight rows, Round in staggered rows
Aperture Dimensions

1) 1.00 x 20.0 mm (±0.03 x 0.20), 2) 1.80 x 20.0 mm (±0.04 x 0.20), 3) 1.90 x 20.0 mm (±0.04 x 0.20), 4) 2.00 x 20.0 mm (±0.04 x 0.20), 5) 2.20 x 20.0 mm (±0.05 x 0.20), 6) 3.55 x 20.0 mm (±0.06 x 0.20)
Pitch

1) 3.00 x 25.0 mm (±0.10 x 0.50), 2) 4.20 x 25.0 mm (±0.12 x 0.50), 3) 4.30 x 25.0 mm (±0.12 x 0.50), 4) 4.50 x 25.0 mm (±0.13 x 0.50), 5) 4.90 x 25.0 mm (±0.13 x 0.50), 6) 6.80 x 25.0 mm (±0.17 x 0.50)
Internal Seal

Double Solder Joint
External Gasket

NBR 70
Temperature Range

-30 to +100 °C
Certification

Certification / Calibration (ships with Inspection Certificate 3.1 acc. to EN 10204)
Sieve Label

3D Laser Engravement (Tamper-Proof, with Serial No.)
HS-Code

84371000

Sample Calibration Certificate

To bolster full confidence in the quality of Blau-Metall grain sieves, each sieve sold via our Grain Sieve eStore is delivered with an Inspection Certificate that includes all results obtained during optical inspection of the sieve. The inspection process is carried out as a calibration in which at least three times as many apertures are measured than are required for the conventional certification according to EN ISO 5223.

Sample Calibration Certificate 3.1


No online PDF viewer installed

Customization & Discounts


CUSTOMIZATION

Blau-Metall offers various customization options for our different test sieving solutions, including our portfolio of grain sieves. Please do not hesitate to contact us via E-Mail for more information on custom products, including those not listed below.

Available Customization Options:
  • Custom Test Sieve Label (3D Laser Engraving in various languages, Internal Serial Nos., etc.)
  • Lead-free Solder Joints (99.9% Sn) if required for food industry application
  • High-Temperature Sieves with FPM Gasket
  • Custom Inspection Documentation (e.g. inspecting every single aperture of a sieve)
  • Non-Standard Test Sieves (Aperture Sizes not included in ISO 5223 / ISO 3310)
What cannot be customized:
  • Test Sieve Frame Material
  • Test Sieve Frame Dimensions

DISCOUNTS

Our ISO 5223 eStore is set up to provide a convenient means of ordering small quantities of our grain test sieves such as single sieves & single test sieve sets. If you require a larger order volume, please contact us directly for an individual quotation – discounts are available from an order volume of 10 Pcs.
