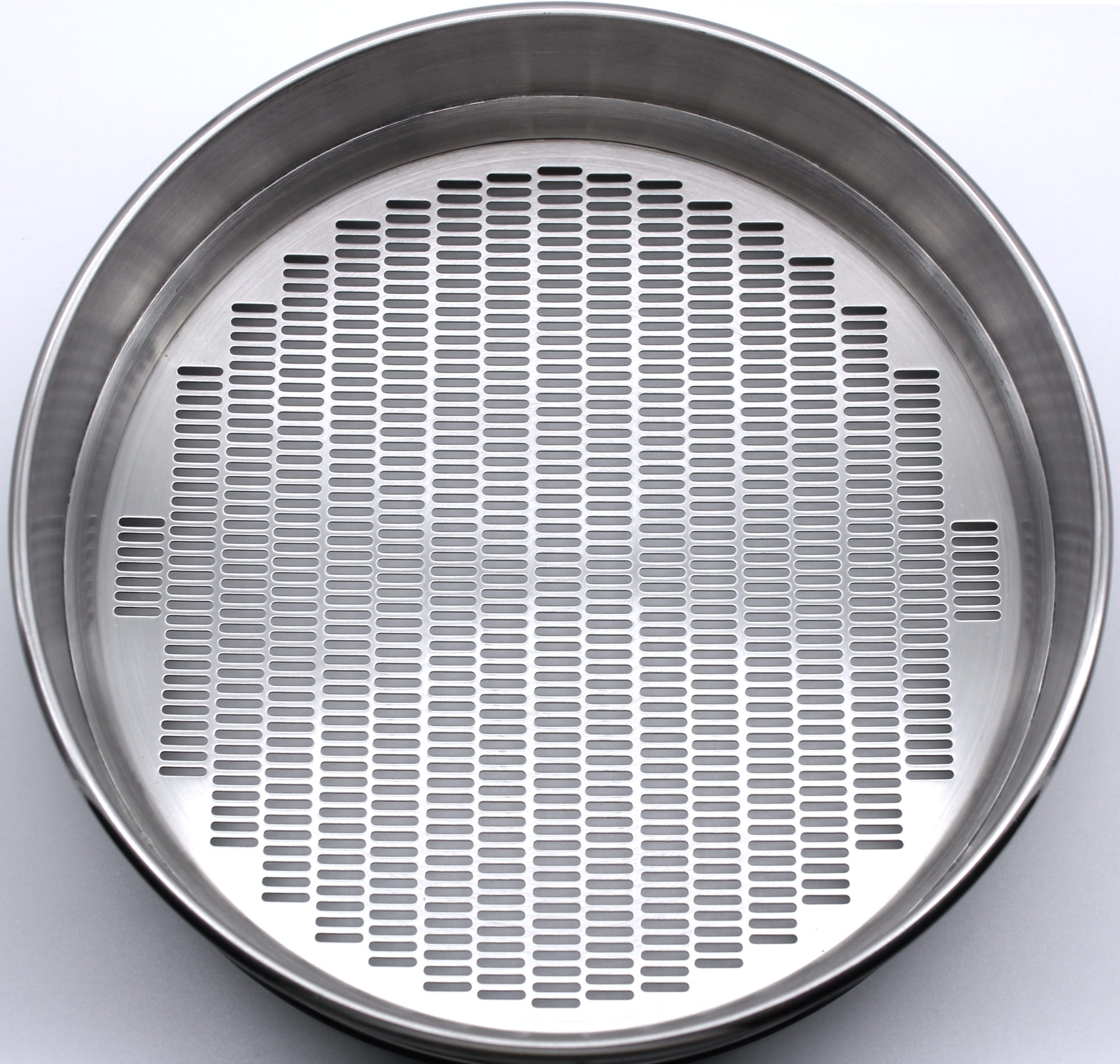

Test Sieve ⌀ 200 mm, Oblong 0.064 x ⅜ in. / 1.63 x 9.53 mm

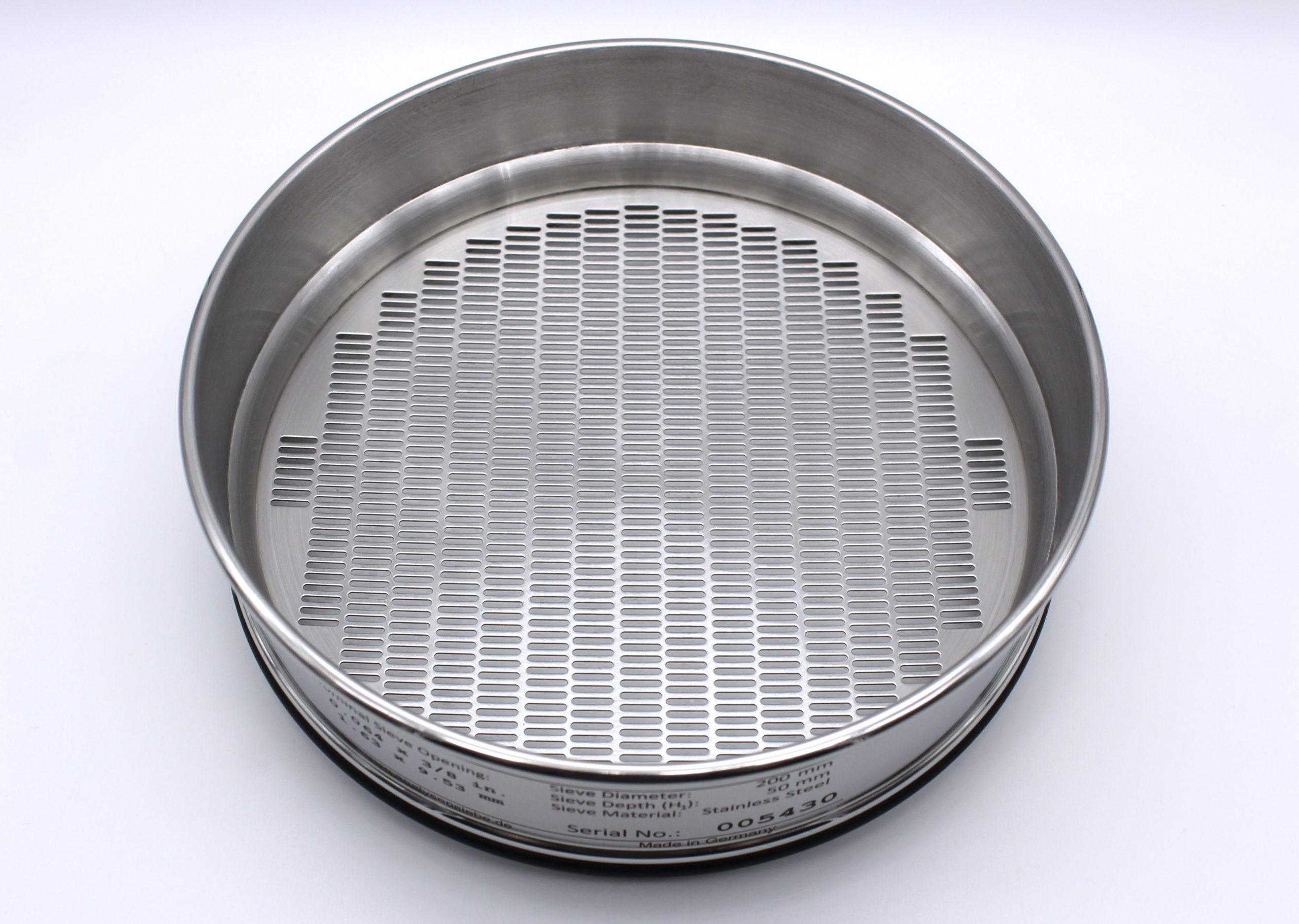

Test Sieve ⌀ 200 mm, Oblong 0.064 x ⅜ in. / 1.63 x 9.53 mm - Image 2
Test Sieve ⌀ 200 mm, Oblong 0.064 x ⅜ in. / 1.63 x 9.53 mm - Image 3

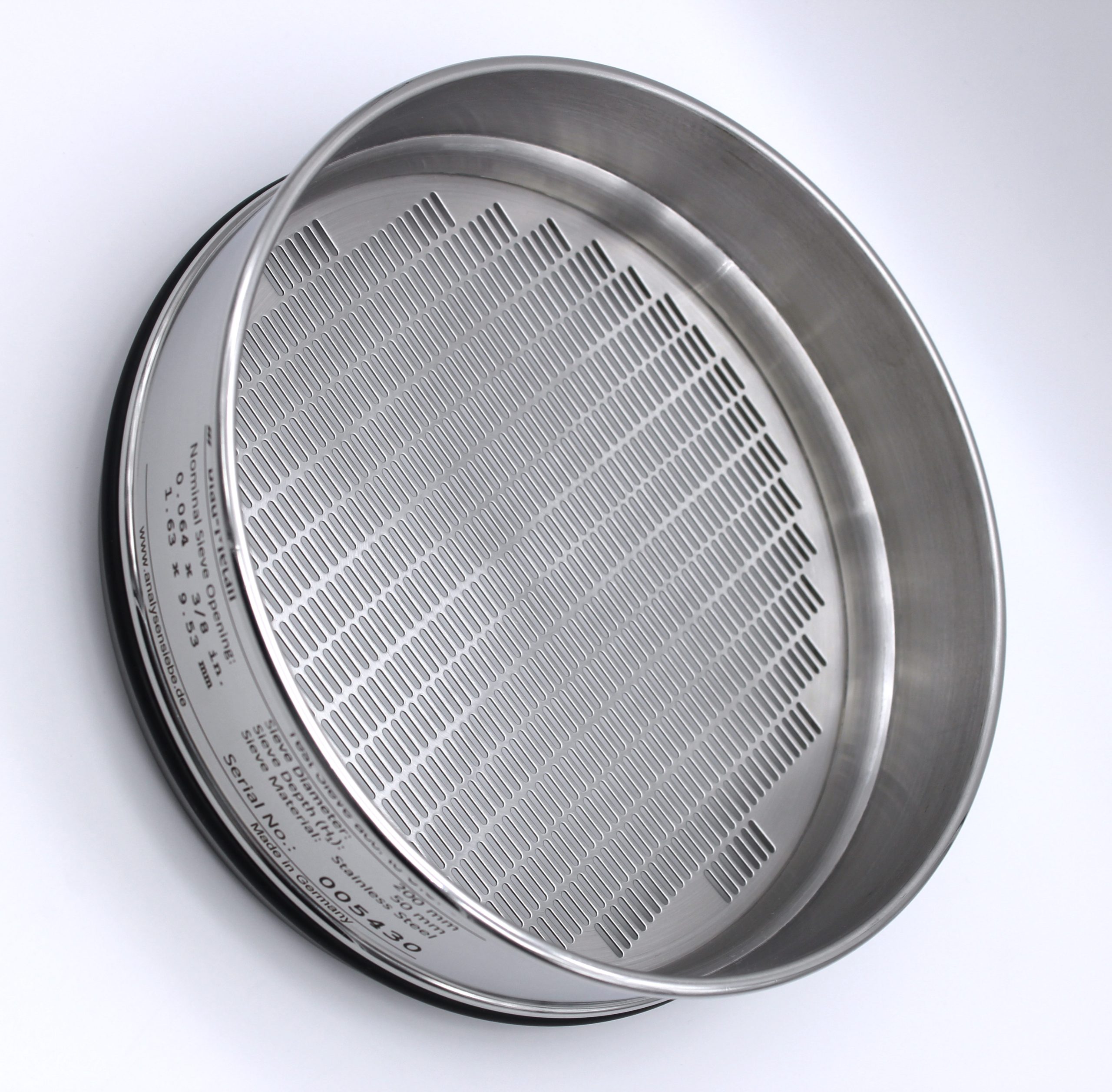

Test Sieve ⌀ 200 mm, Oblong 0.064 x ⅜ in. / 1.63 x 9.53 mm - Image 4

Test Sieve ⌀ 200 mm, Oblong 0.064 x ⅜ in. / 1.63 x 9.53 mm

Grain Sieve CFR/FGIS, ⌀ 200 mm, Oblong 0.064 x ⅜ in. / 1.63 x 9.53 mm

159.00 € (Plus Shipping)

Article-No.: 622210
Sieve Dimensions:
 200 x 32 mm | 200 x 50 mm
Design: Stainless Steel (304), Double Solder Joint
Aperture Opening: 0.064 in / 1.63 mm ± 0.03 mm
Standard: USDA / FGIS / CFR
Documentation: Inspection Certificate 3.1 (EN 10204)
*eStore Orders are limited to small quantities. If you require a larger quantity, please contact us directly for an individual quote.
SKU: 622210 Categories: , , Tags: , , ,

Description

Blau-Metall Laboratory Test Sieve (Grain Sieve), U.S. Code of Federal Regulations (CFR) / Federal Grain Inspection Service (FGIS) / USDA Equipment Handbook

Test Sieve ⌀ 200 mm, Oblong 0.064 x ⅜ in. / 1.63 x 9.53 mm

Stainless Steel test sieve with high-precision apertures for manual sieving by hand or automatic sieving with a sieve shaker according to tolerances specified in the United States Code of Federal Regulations / the United States Department of Agriculture (USDA) Federal Grain Inspection Service (FGIS) for reliable analysis of seeds, cereals and other agricultural products.

✔  Durable Design for Long Lifetime (All stainless-steel components)
✔  High-precision aperture according to USDA specifications
✔  Fully Sealed Design to eliminate cross contamination

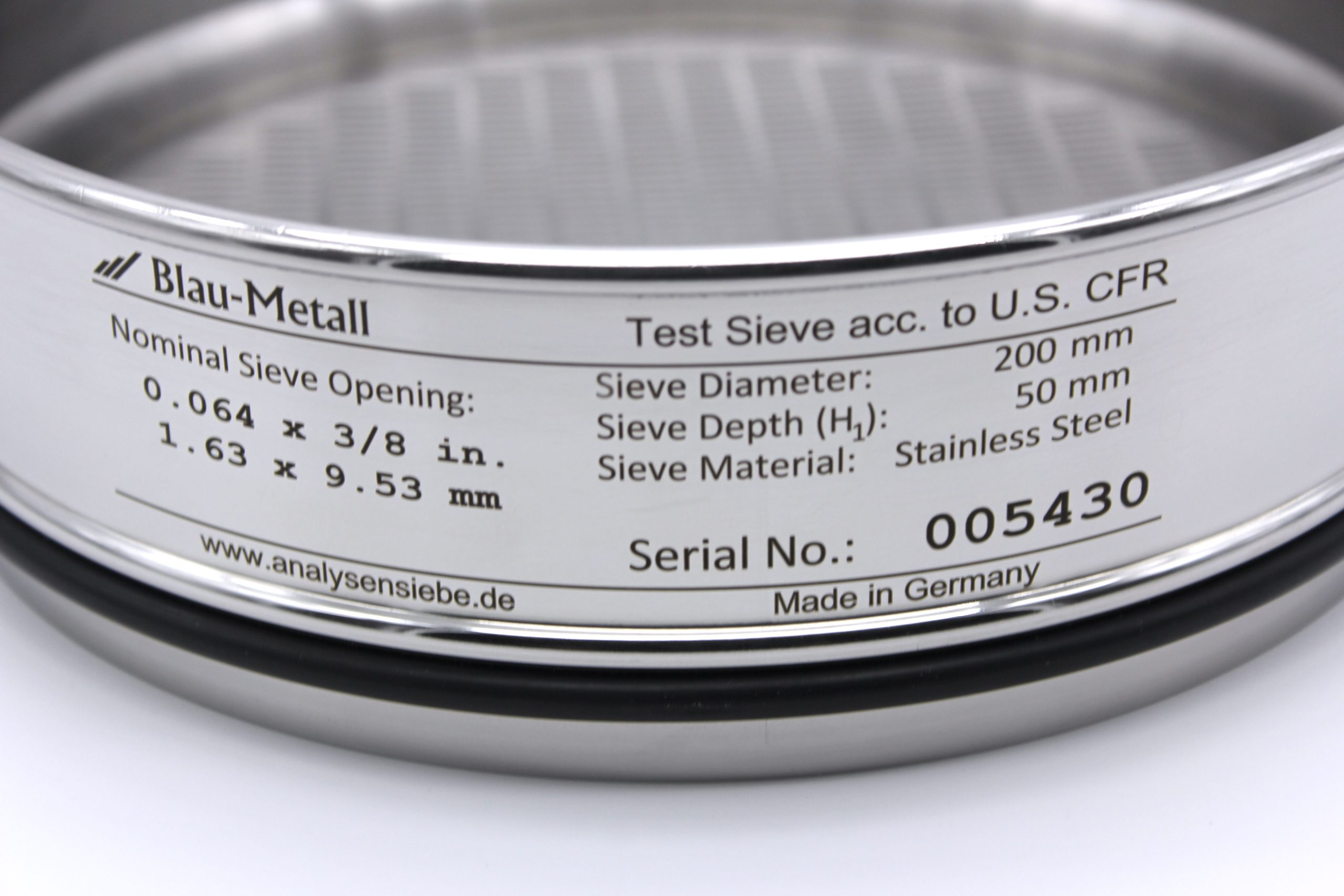

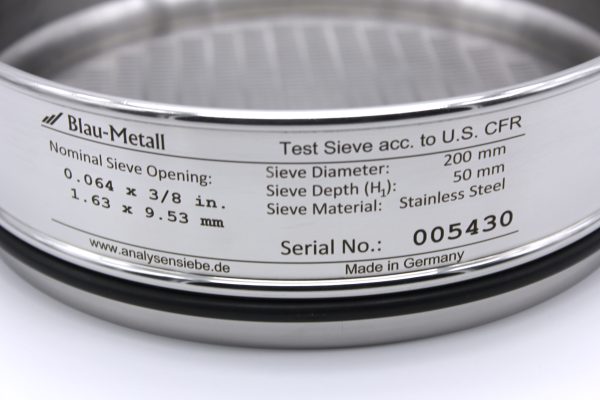

✔  Tamper-Proof, 3D Laser Label with individual Serial Number for full traceability
✔  Incl. Inspection Certificate (EN 10204) in English Language
✔  Assembled & Certified in Germany, All Parts sourced in Germany
✔  Compatible with 200 mm Sieves & Sieve Shakers of all major manufacturers

Application

This test sieve complies with the following standards / programs:

  • United States Code of Federal Regulations
  • U.S. Federal Grain Inspection Service (FGIS)
  • USDA Equipment Handbook
  • UN World Food Programme
  • EAS 51



Technical Specifications

Sieve Type: Oblong Apertures, End Stg.
Standard: CFR / FGIS / USDA Equipment Handbook
Sieve Diameter: 200 mm
Sieve Depth (H1): 32 mm (Half Height)
50 mm (Full Height)
Frame: Stainless Steel (1.4301 / AISI 304)
Total Frame Height: 46 mm (Half Height)
64.5 mm (Full Height)
Frame Thickness: 0.8 mm
Sieving Medium: Stainless Steel (1.4301 / AISI 304)
Plate Thickness: 0.81 mm
Internal Tensioning Ring: Stainless Steel (1.4301 / AISI 304)
Sieve Weight: 400 g (32 mm), 500 g (50 mm)
Perforation Type: Oblong in staggered rows
Aperture Width (w1):  0.064 in. / 1.63 mm ± 0.03 mm
Aperture Length (W2): 3/8 in. / 9.53 mm ± 0.05 mm
Pitch (p1): 1/8 in. / 3.18 mm ± 0.17 mm
Pitch (p2): 0.4275 in. / 10.86 mm ± 0.34 mm
Certification Type: Certification (incl. Certificate 3.1)
Laser Engraving: English, incl. Individual Serial-No.
Certificate Language: English
Internal Seal: Double Solder Joint
External Gasket: NBR 70
Temperature Range: -30 to 100 °C



Blau-Metall Grain Sieves

The Blau-Metall sieve portfolio builds on nearly 30 years of experience in the production of robust and highly-precise grain sieves across international ISO standards, European standards, the U.S. Code of Federal Regulations and a variety of national requirements to provide our customers with a complete solution for all grain sieving tasks across all markets.

Blau-Metall test sieves stand out for their particularly robust design and their high precision perforated plate achieved through a production process perfected over nearly three decades and a rigorous quality control program that includes multiple stages of optical measurements on each and every sieve we deliver. The sieves consist of high-stability stainless steel frames with smooth upper edges for easy handling and precision-aperture perforated plates made from corrosion-resistant stainless steel, both joined by a stainless-steel tensioning ring and a pair of robust solder joints that form a complete seal that will stay in place over an extended period.

Blau-Metall grain test sieves are compatible with quality sieves of other sieve manufacturers and can be used on sieve shakers and sieve machines of all major suppliers. Given their light weight and handy dimensions, the sieves are also ideally suited for on-site analysis and hand-sieving of grain samples. Our construction methodology with ease of use in mind enables a simple cleaning process for our sieves. With their fully sealed and corrosion- & temperature-resistant design, Blau-Metall sieves can deliver reliable and repeatable sieving results over a period of many years – a stark contrast to comparable sieves with aluminum or galvanized steel components.

Further Reading

> Blau-Metall Test Sieves according to EN ISO 5223

> Determination of Impurities (Besatz) in Cereals according to EN 15587

> Grain Test Sieves in national and international Standards

Test Sieve Specifications

Weight 640 g
Dimensions 23 × 23 × 7 cm
Country of Origin

Germany
Brand

Blau-Metall
Sieve Type

Perforated Plate
Perforation Type

Oblong, End Stg.
Sieve Standard

U.S. CFR / FGIS / USDA Equipment Handbook
Sieve Diameter

200 mm (7.87")
Test Sieve Depth (H1)

32 mm, 50 mm
Frame

Stainless Steel (1.4301 / AISI 304)
Total Frame Height

46 mm (Half Height), 64.5 mm (Full Height)
Frame Thickness

0.8 mm
Internal Tensioning Ring

Stainless Steel (1.4301 / AISI 304)
Perforated Plate

Stainless Steel (1.4301 / AISI 304)
Plate Thickness

0.81 mm ± 0.04 mm
Sieve Weight

410 g (200 x 32 mm), 500 g (200 x 50 mm)
Weight (incl. Packaging)

560 g (200 x 32 mm), 650 g (200 x 50 mm)
Dimensions (incl. Packaging)

230 x 230 x 70 mm
Perforation

Oblong in staggered rows
Aperture Width

0.064 in. / 1.63 mm ± 0.03 mm
Aperture Length

3/8 in. / 9.53 mm ± 0.05 mm
Pitch P1

1/8 in. / 3.18 mm ± 0.17 mm
Pitch P2

0.4275 in. / 10.86 mm ± 0.34 mm
Internal Seal

Double Solder Joint
External Gasket

NBR 70
Temperature Range

-30 to +100 °C
Certification

Certification (ships with Inspection Certificate 3.1 acc. to EN 10204)
Sieve Label

3D Laser Engravement (Tamper-Proof, with Serial No.)
HS-Code

84371000

Sample Inspection Certificate

To bolster full confidence in the quality of Blau-Metall grain sieves, each sieve sold via our Grain Sieve eStore is delivered with an Inspection Certificate that includes all results obtained during optical inspection of the sieve. The inspection process is carried out as an enhanced certification in which more apertures are measured than are required for the conventional certification according to EN ISO 5223.

Sample Inspection Certificate 3.1


No online PDF viewer installed

Customization & Discounts


CUSTOMIZATION

Blau-Metall offers various customization options for our different test sieving solutions, including our portfolio of grain sieves. Please do not hesitate to contact us via E-Mail for more information on custom products, including those not listed below.

Available Customization Options:
  • Custom Test Sieve Label (3D Laser Engraving in various languages, Internal Serial Nos., etc.)
  • Lead-free Solder Joints (99.9% Sn) if required for food industry application
  • High-Temperature Sieves with FPM Gasket
  • Custom Inspection Documentation (e.g. inspecting every single aperture of a sieve)
  • Non-Standard Test Sieves (Aperture Sizes not included in ISO 5223 / ISO 3310)
What cannot be customized:
  • Test Sieve Frame Material
  • Test Sieve Frame Dimensions

DISCOUNTS

Our ISO 5223 eStore is set up to provide a convenient means of ordering small quantities of our grain test sieves such as single sieves & single test sieve sets. If you require a larger order volume, please contact us directly for an individual quotation – discounts are available from an order volume of 10 Pcs.
